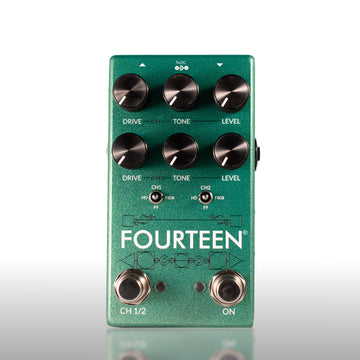

FOURTEEN® - Dual Channel OD, boost with Hexdrive & Fortin Modded 808/9

The search for the perfect mod ends here.

The FOURTEEN® is not simply an overdrive pedal; it is the physical embodiment of Mike Fortin’s legendary modification history. We have consolidated the secret weapon circuits that discerning guitarists and metal titans have hunted for years into one relentless, pedalboard-friendly chassis.

Why settle for a single modification when you can have the entire history of overdrive transformation at your feet? The FOURTEEN® offers two identical, fully independent channels, allowing you to stack, switch, and sculpt the ultimate "Green Box" tone.

The Holy Trinity of Tone
Each channel on the FOURTEEN® is switchable between three distinct, historically significant circuit topologies. This is not modelling - these are the actual analog circuit paths of the legends:

The Modded OD808®/TS808®: The vintage classic. Expect that legendary mid-hump growl, but tightened, purified, and optimized for high-gain amps.
The Modded OD9®/TS9®: The modern standard. Enhanced for aggression, sharper attack, and absolute clarity in a dense mix.
The Hexdrive: The cult classic. A surgical clean boost that redefined how to push a tube amp into saturation without coloring the tone.

Seamless Amp Integration
Designed for the modern rig, the FOURTEEN® features a 1/4" side jack for remote switching. This allows for seamless synchronization with your amplifier’s channel switching.

Assign Your Attack: Instantly assign a specific drive character (e.g., the Hexdrive) to your clean channel, and switch to a different topology (e.g., the Modded OD9) when you hit your dirty channel.
Total Control: Pure, unrelenting gain capable of making your amp scream like never before.

Key Features

Dual Independent Channels: Set up two different boost levels or gain structures and switch instantly.
3-Way Circuit Selector: Toggle between Fortin-modded 808, 9, and Hexdrive circuits on both channels.

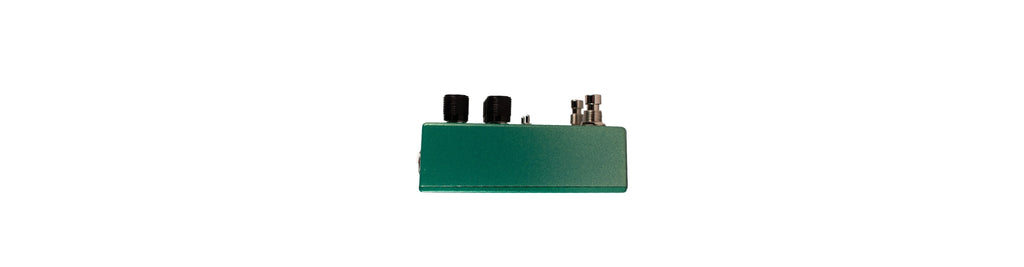

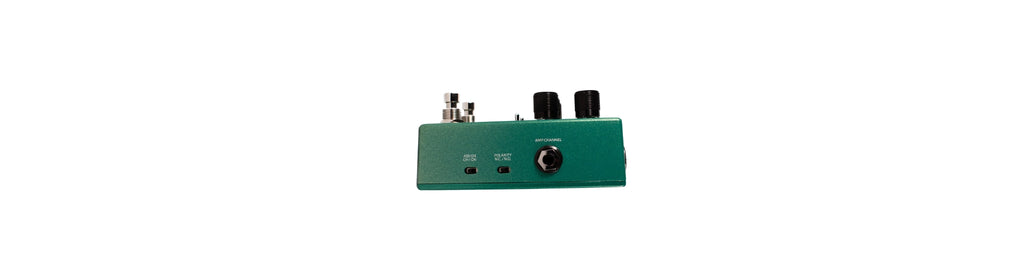

Integrated Switching: Side jack allows for remote switching via amplifier control.
Built for War: Rugged chassis construction designed to survive the rigors of gigging.
The Fortin Standard: Engineered to provide the tightest, most aggressive boost for high-gain metal and rock.

📄 Download Product Manual

Fortin Fourteen Pedal - The Ultimate Tubescreamer Mod and TS9, TS808, OD9, OD808 pedal modifications.

THE HOLE TRINITY OF TONE

With the HexDrive, F9 and F808 on each channel, this truly is a 3 in one pedal!

2 IDENTICAL CHANNELS

With 3 clipping modes over two identical channels, the Fourteen is the most versatile dirty boost available

The finer details...

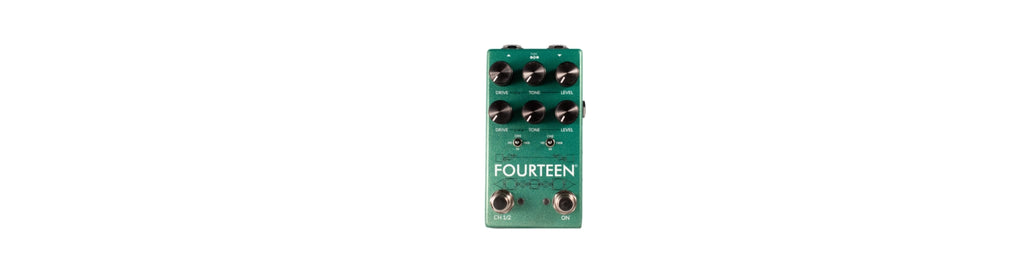

Controls

On: True bypass, relay based soft footswitch - FOURTEEN® will power up in the same state it was powered off;
CH 1/2: Switches between CH 1 (red) and CH 2 (Green)
Gain: The amount of gain in circuit;
Tone: A regular tone/treble control;
Level: Increases the output level of the pedal;
HD mode: HexDrive mode offers new tone shaping possibilities for heavy musicians. The HD transitions from clean boost to overdrive, delivering the best of both worlds. The DRIVE sweep is key; it doesn’t add dirt until about 10-11 o’clock, allowing you to drive the front end of your amp while enjoying its natural character. At higher gain settings, you get a sweet midrange push that elevates your tone again;
F9 mode: This F9 mode is a step up in output level push that gives you the ability to push your amplifier to drive more naturally while keeping the character of the amp intact. The F9 mode uses an alternative clipping circuit, enabling it to provide a fully clean boost when the DRIVE control is set to lower counter-clockwise positions. As the DRIVE is increased, it transitions into a more natural-sounding, tube-like drive compared to traditional offerings. The F9 is voiced with an enhanced midrange, accentuating harmonics for more articulate pick attack. LEVEL output is twice as much as the HD mode; and
F808 mode: The F808 surpasses the other two modes in output level and saturation, functioning as an amp booster or a pure distortion pedal. The Primary clipping stage creates the natural breakup with a secondary clipping stage added to the DRIVE control. This additional gain stage provides a natural-sounding, tube-like overdrive with enhanced compression and organic bloom as the DRIVE control is increased clock-wise. This mode enhances the upper midrange to accentuate pick attack and harmonics while preserving the low-end depth. LEVEL output is three times as much as the HD mode.

Technical

Built in U.S.A.;
Highest grade materials selected for superior sound, response and reliability;
Industry standard DPDT relay true bypass switching;
Two identical channels to give you complete control of your tone;
Remote switching allows you to change the channel of your amp at the same time you activate the pedal;
Polarity switcher so you can assign either side of the pedal to either channel of your amp;
9vDC center-pin negative (fully regulated) external adapter/power supply only (not included);
Power draw: 115mA @9vDC
Pedal Dimensions (W/D/H): 4.8” x 2.64” x 1.6” (122mm x 67mm x 39.5mm) excluding knobs and switches;
Shipping Weight: 0.4kg
Includes Fortin’s limited 1-year warranty;
Ships globally – all published prices are USD.
